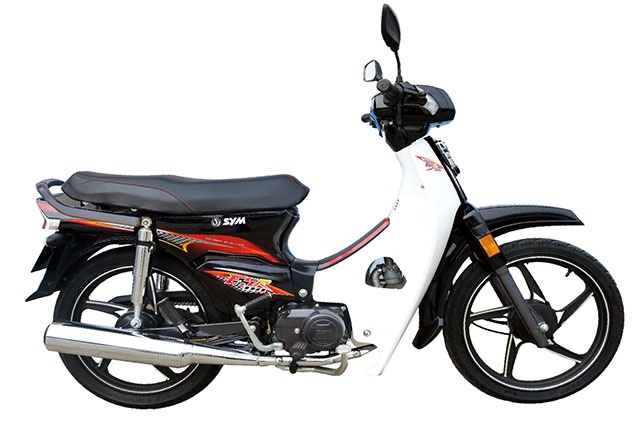

1. Black

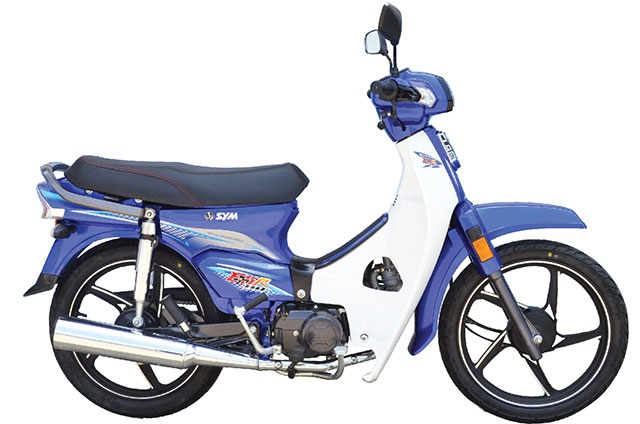

2. Blue

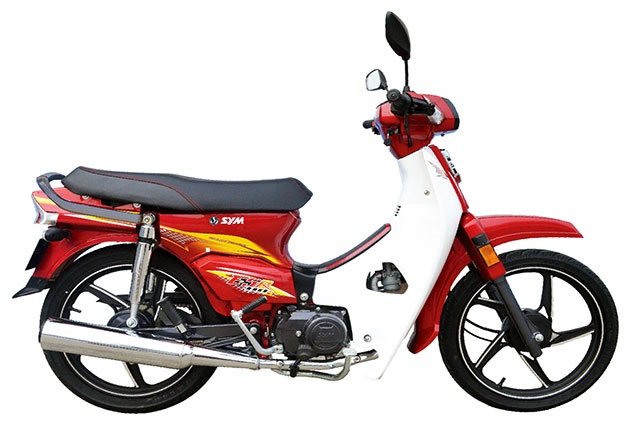

3. Red
Express Loan Calculation:-
D/P RM 710.00
60 Bln RM 96.00
48 Bln RM 112.00
42 Bln RM 124.00
36 Bln RM 140.00
30 Bln RM 162.00
24 Bln RM 195.00
********************
D/P RM 1280.00
60 Bln RM 82.00
48 Bln RM 96.00
42 Bln RM 106.00
36 Bln RM 120.00
30 Bln RM 139.00
24 Bln RM 167.00
********************
D/P RM 1780.00
60 Bln RM 82.00
48 Bln RM 96.00
42 Bln RM 106.00
36 Bln RM 120.00
30 Bln RM 139.00
24 Bln RM 167.00
***PRICES ON THE ABOVE ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE***
*******************************************
ENGINE |
|
ENGINE TYPE |
4-Stroke, Single Cylinder (SOHC) |
DISPLACEMENT |
108cc |
BORE X STORKE |
50mm x 55mm |
COOLING SYSTEM |
Air Cooled |
MAXIMUM HORSEPOWER |
7.2ps / 7,500rpm |
MAXIMUM TORQUE |
0.76kfg.m / 5,500rpm |
COMPRESSION RATIO |
9.1:1 |
IGNITION SYSTEM |
DC-CDI |
STARTING SYSTEM |
Kick and Electric Starter |
FUEL TANK CAPACITY |
4 Liter |
FUEL CONSUMPTION |
55km / Litre @ 90km/h |
TRANSMISSION |
|
TYPE |
4-Speed Rotary |
CLUTCH |
Automatic & Multi Plate Wet Clutch |
PRIMARYREDUCTION RATIO |
4.059 (69 / 17) |
FINAL REDUCTION RATIO |
2.57 (36 / 14) |
ELECTRICAL SYSTEM |
|||
BATTERY |
12V 5AH (MF-Maintenance Free) |
||
DIMENSION |
|||
OVERALL LENGTH |
1890 mm |
||
OVERALL WIDTH |
650 mm |
||
OVERALL HEIGHT |
1080 mm |
||
DRY WEIGHT |
96kg |
||
CHASSIS |
|||
TYPE |
Pipe Backbone |
||
SUSPENSIONS |
|||
FRONT SUSPENSIONS |
Telescopic Folk |
||
REAR SUSPENSIONS |
Swing Arm |
||
BRAKES |
|||
FRONT BRAKES |
Drum |
||
REAR BRAKES |
Drum |
||
TIRES |
|||
FRONT TIRES |
70 / 90-17 (Tubeless) |
||
REAR TIRES |
80 / 90-17 (Tubeless) |
||
REMARKS *All the pictures shown above are for illustration purposes only and may vary from actual product *All the features ,specifications and colours are subject to change without prior notice and may vary from actual product *Price above is subject to change without prior notice
|
|
||
