100% LOAN
***No motorcycle license***
***No Guarantor***

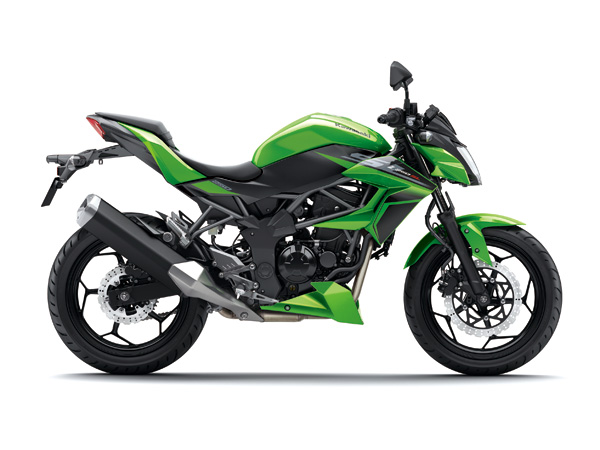

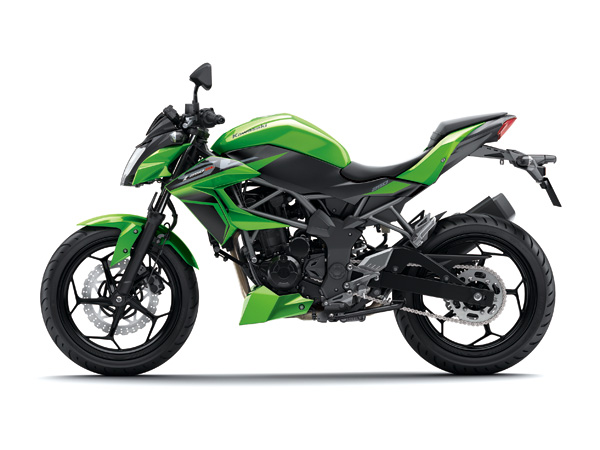

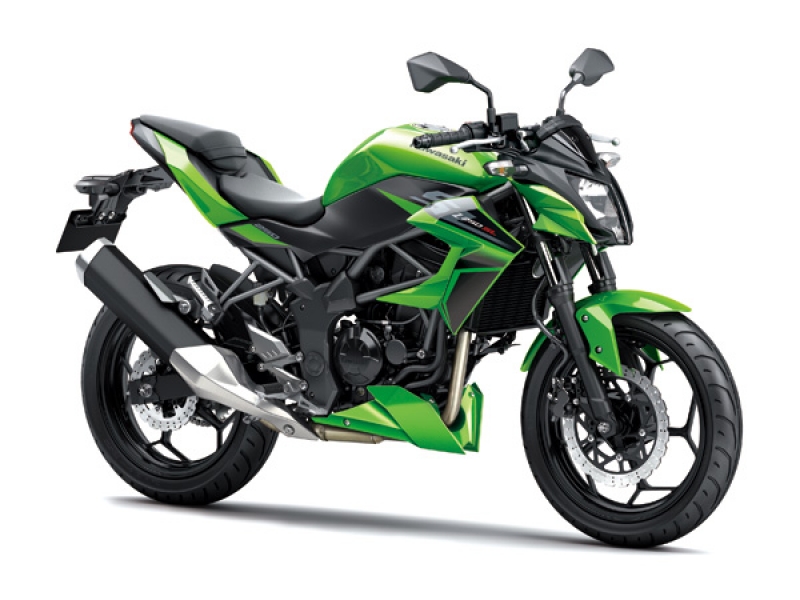

1. Green only
***PRICES ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE***
| Engine Type | Liquid-cooled, 4-stroke 1 Cyl DOHC |
| Displacement | 249 cm³ |
| Bore And Stroke | 72.0 mm x 61.2 mm |
| Compression Ratio | 11.3:1 |
| Performance: | |
| a) Maximum Power | 20.6 kW @ 9,700 rpm |
| b) Maximum Torque | 22,6 N.m { kgf.m} @ 8,200 rpm |
| Fuel System | Fuel injection: ø38 mm x 1 |
| Iginition | Keihin, Transistorized Ignition |
| Starting | Electric |
| Lubrication | Forced lubrication (wet sump) |
| Max speed: | 153 km/h |
DRIVE TRAIN
| Transmission | 6-speed, Return |
| Gear ratios: | |
| 1st | 3.000 (393/11) |
| 2nd | 1.933 (29/159) |
| 3rd | 1.444 (31/22) |
| 4th | 1.217 (28/23) |
| 5th | 1.045 (23/22) |
| 6th | 0.923 (24/26) |
| Final reduction ratio | 3.00 0 (42/14) |
| Clutch | Wet multi-disc, manual |

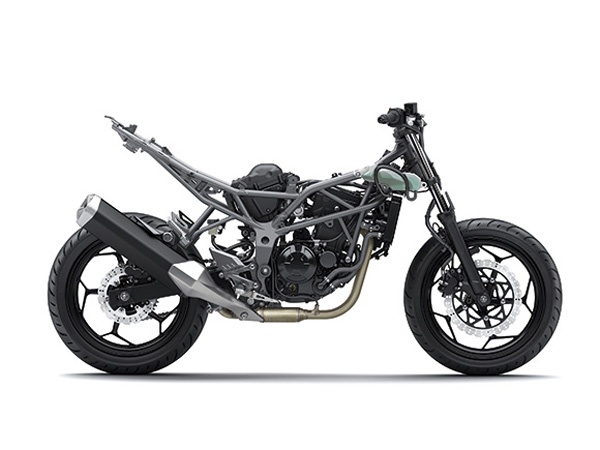

FRAME /TYRE

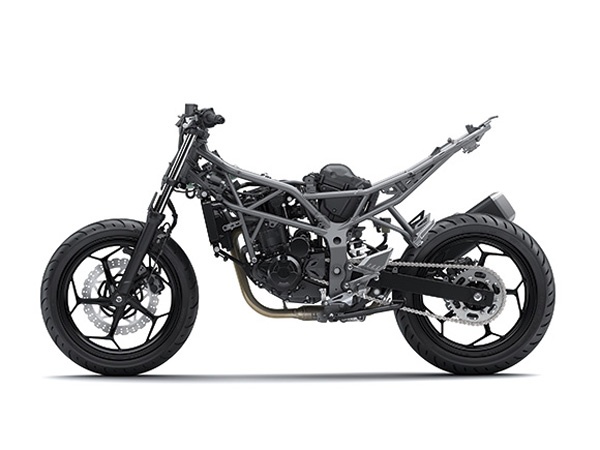

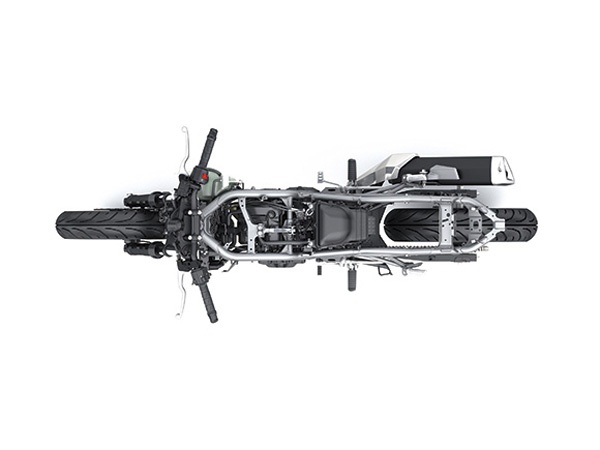

| Type | Tube Diamond |
| Caster (rake/Trail) | 24° degrees/90 mm |
| Tyre: | |
| a) Front | 100/80ZR-17M M/C (52S) |
| b) Rear | 130/70ZR - 17M M/C (62S) |
| Wheel Travel | |
| a) Front | 110 mm |
| b) Rear | 116 mm |
| Steering angle,left/right | 36° / 36° |
SUSPENSION
| Front Suspension | Telescopic fork |
| Rear Suspension | Bottom-Link Uni-Trak swing arm |
| BRAKES | |
| Front Type | Single 263 mm petal disc. Caliper: dual-piston. |

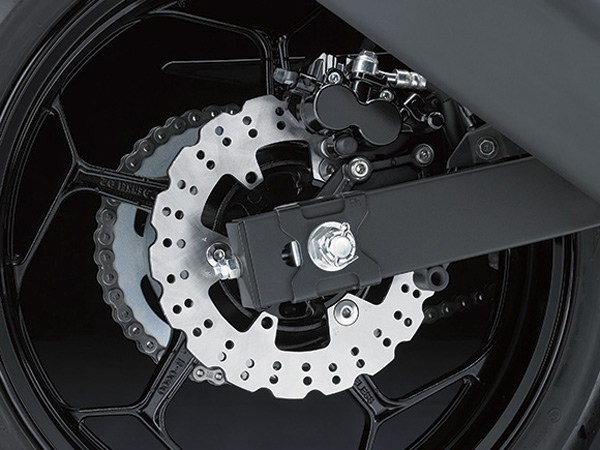

| Rear Type | Single 193 mm petal disc. Caliper: Dual-piston. |
DIMENSIONS
| Overall length | 1,935 mm |
| Overall width | 685 mm |
| Overall height | 1,075 mm |
| Wheelbase | 1,330mm |
| Ground clearance | 165 mm |
| Seat height | 780 mm |
| Curb mass | 151 Kg |
| Fuel capacity | 11 liters |

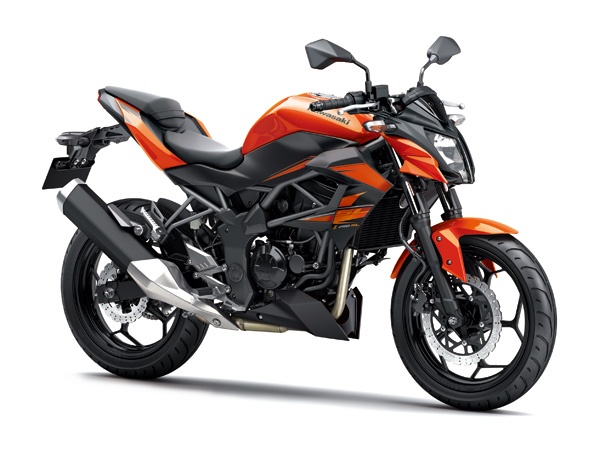

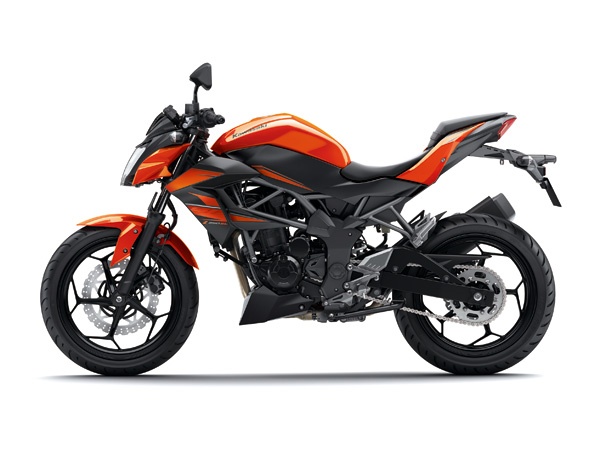

*Actual model may vary in detail from image shown and specifications are subject to change without prior notice.
